Home / Platforms / Picket-7

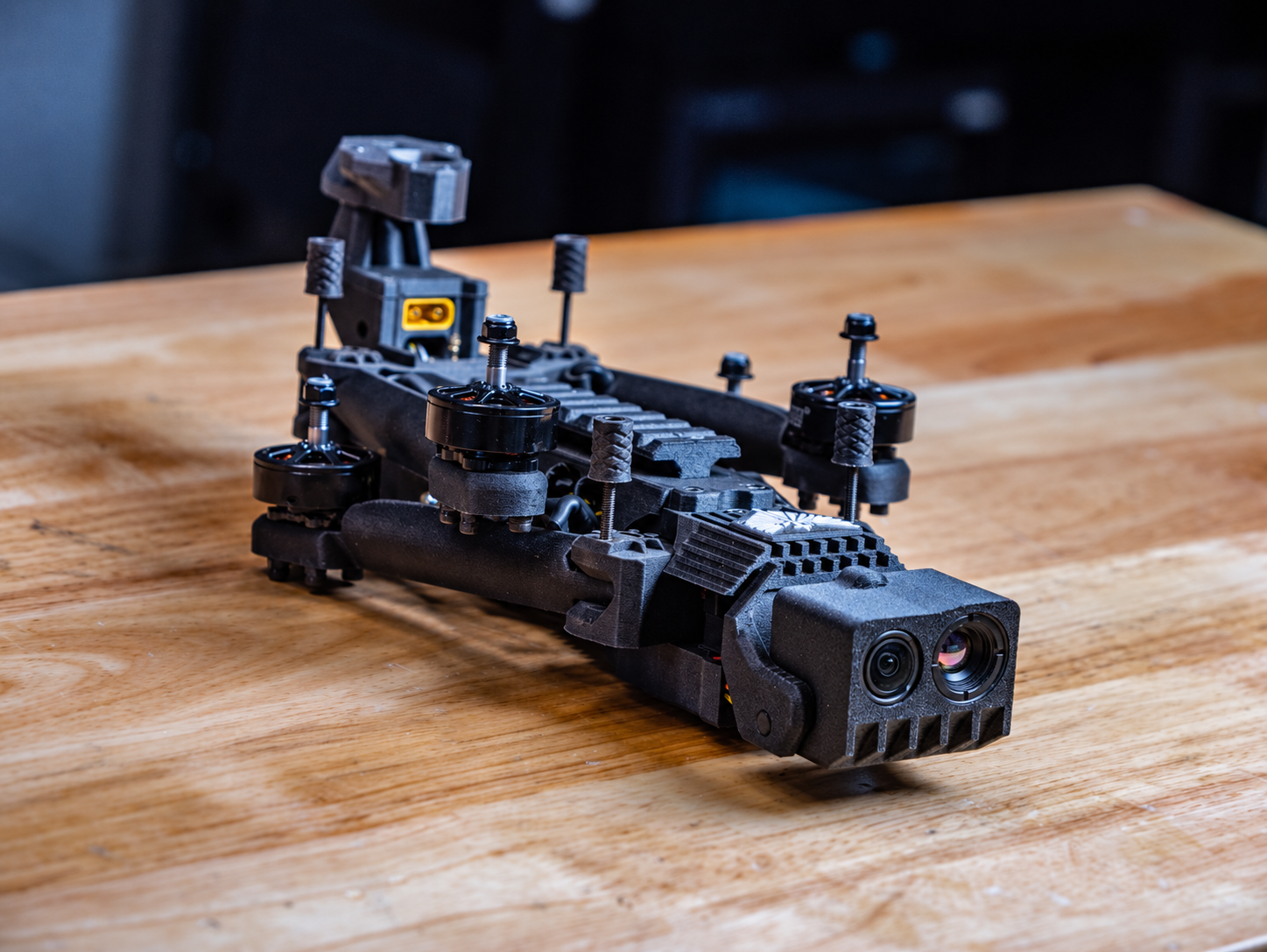

Printed & assembledNorth Carolina, USA Built to order Sentinel Dynamics Picket-7 on a workbench, arms folded, with the dual EO and thermal camera payload facing forward Order code P7-STD Standard parts
Your buildP7-STD
Parts
Standard
Live video
Analog
Control
Camera
Day + Thermal
Orders opening soon Ships in 3 to 4 weeks

Picket-7

A foldable 7-inch drone for search, overwatch, and inspection.

2-axis stabilized gimbalArduPilot autonomyFolds for transport

Fly it by hand or let it fly a planned route on its own. Add a day and thermal camera to find people and heat sources in the dark. Every Picket-7 is printed, assembled, and test-flown in North Carolina before it ships.

Starting at$0
Step 1 of 3ConfigurationWhat does the drone need to see? Every camera rides on a 2-axis stabilized gimbal. Listed from lowest to highest price.
Which one is right for me?

Long-Range Day + Thermal adds a Caddx Farsight day camera with 8x magnification, so you can see detail from farther away without flying closer.

Thermal sees heat instead of light. If you will look for people or vehicles at night, in brush, or through light smoke, pick a configuration with thermal.

DJI O4 HD gives the sharpest picture and records 4K, but it has no thermal camera. It is best for daytime inspection and training footage.

FPV Camera is the simplest and lowest-cost setup. You can talk to us about upgrading the camera later.

What is NDAA, and do I need it?

The National Defense Authorization Act limits drone electronics from certain foreign sources. If any federal grant money is involved, or your state or agency restricts drone purchases, choose one of the NDAA configurations.

NDAA configurations use analog video and Crossfire control, because those are the parts we can source to the rule today. Everyone else can choose any configuration.

Step 2 of 3Control linkThe radio connection between your controller and the drone.
Which one should I pick?

If you already own a controller, pick the link it uses. If you are starting fresh, Crossfire is the safer choice for searching wooded or built-up areas. ExpressLRS is great in open areas and pairs with most new controllers.

Step 3 of 3Ready to flyTo fly, you need a controller and a screen or goggles.
Extra batteries One battery comes with the drone. Spares keep you flying while others charge. each
0

Your Picket-7

P7-STD

    Total (USD)$0
    Ships in 3 to 4 weeksBuilt and test-flown before it leaves NC
    FAA Remote IDBroadcast module installed
    US orders onlyShipped to US addresses only
    Need a quote?

    Online ordering opens soon. Want one now? Request a quote and we will build it for you.

    7 inPropellers. Arms fold flat for transport.
    2-axisStabilized gimbal keeps the picture steady through wind and turns.
    AutoFlies planned routes and returns home on its own. Runs ArduPilot.
    640Thermal camera resolution, optional.
    30 minFlight time without a camera.
    NCPrinted, built, and test-flown in North Carolina.

    Flight software

    Flies Itself.
    Answers to You.

    The Picket-7 runs ArduPilot, the open-source autopilot used by researchers, companies, and agencies around the world. Plan a route on a laptop, a tablet, or right on the AX12 controller's touchscreen, and the drone flies it. Let go of the sticks and it holds its position. If the link drops or the battery runs low, it comes home on its own.

    • Position holdLet go of the sticks and it stays put.
    • Waypoint missionsDraw a route, press go.
    • Return to launchOne switch brings it home.
    • FailsafesA lost link or low battery triggers a safe return.
    • ATAK readyMAVLink and MoroSX bring video and position into your C2 tools.
    • Yours to updateLoad newer ArduPilot releases any time. No lock-in.

    Every Picket-7 ships on an official ArduPilot stable release, tuned and test-flown by us.

    Flight stackP7 · Rev A
    Firmware
    ArduCopter, stable
    Controller
    TBS Lucid H7
    Protocol
    MAVLink 2
    Ground station
    Mission Planner, QGC
    Sentinel Dynamics● NC, USA

    What it's for

    One Drone, Many Jobs

    The camera changes, the drone does not. Pick the configuration that fits the job.

    01

    Search & Rescue

    Find people and heat signatures at night, in brush, or through light smoke.

    Suggested: Long-Range Day + Thermal (8× zoom)
    02

    Overwatch

    Keep eyes on a scene, route, or area from above, day or night.

    Suggested: FPV + Thermal or Long-Range Day + Thermal
    03

    Site Security

    Check perimeters and facilities with recorded video.

    Suggested: FPV + Thermal
    04

    Inspection & Training

    Document structures and sites, or record training flights in HD.

    Suggested: DJI O4 HD

    Standard vs NDAA

    Same Drone, Different Sourcing

    The frame, motors, and autopilot are the same. The NDAA build changes where the key electronics come from, which limits the options.

    StandardP7-STDNDAA-sourcedP7-NDAA
    Choose it ifNo federal or state sourcing rules apply to your purchaseFederal grant money is involved, or your agency requires it
    Live videoAnalog or DJI O4 HDAnalog only
    Control linkCrossfire or ExpressLRSCrossfire only
    Camera optionsFPV, FPV + Thermal, Long-Range Day + Thermal, or DJI O4 HDNDAA FPV camera, with or without RPX UAV640 thermal
    AutopilotLucid H7, ArduPilotLucid H7, ArduPilot
    Remote IDHoly Stone broadcast modulePhoenix UAS broadcast module
    PaperworkParts list on requestComponent origin list on request

    For the technical buyer

    Full Specifications

    Common to every build. Video, control, and camera follow your choices above.

    Airframe & Power

    Frame
    PA612 CF-nylon, printed
    Arms
    Folding, thumb-screw hinge
    Props
    Gemfan 7535
    Motors
    DYS 2807, 1300 kV ×4
    ESC
    Lucid 60A 4-in-1
    Battery
    Ovonic 6S 3300 mAh LiPo

    Flight & Autonomy

    Firmware
    ArduPilot / ArduCopter
    Autonomy
    Waypoint missions, return to launch
    Flight controller
    TBS Lucid H7
    GNSS
    ARK SAM Mini
    Altimetry
    Lidar, optical flow (optional)
    Remote ID
    Broadcast module

    Camera & Comms

    Mount
    2-axis servo, nose
    Payload bay
    Auxiliary, tool-free
    Video
    Analog
    Control
    C2 integration
    MoroSX, ATAK
    Endurance
    30 min, no payload

    In the box

    What You Get

    Everything you need to get it in the air. Add the ground kit if you need a controller and screen.

    Picket-7 droneBuilt to your choices, tuned, and test-flown. Remote ID installed.
    BatteryOne Ovonic 6S 3300 mAh LiPo.
    SupportDirect email support from the team that built it.
    PaperworkQuick-start guide, ArduPilot settings file, and a build sheet with your serial number.

    New to drones?

    Terms on This Page

    Plain-English meanings for the words you'll see above.

    FPV
    First-person view. A live video feed from the drone to a screen or goggles, so you see what it sees.
    Analog vs digital
    Analog video is instant but grainy. Digital (DJI O4) is sharp HD with a very small delay.
    Control link
    The radio connection from your controller to the drone. Crossfire and ExpressLRS are two types. Your controller must match.
    Thermal
    A camera that sees heat, not light. "640" is its resolution. Also called LWIR.
    ArduPilot
    The autopilot software. It holds position, flies planned routes, and can return the drone home on its own.
    NDAA
    A federal law limiting drone electronics from certain foreign sources. Often required for grant-funded purchases.
    Remote ID
    An FAA rule. The drone broadcasts an ID while flying. Every Picket-7 has a module installed.
    6S LiPo
    The battery type. "6S" means six cells, about 22 volts. Charge and store it per the included guide.

    Questions

    Before You Order

    I have never flown a drone like this. Is it right for me?

    Yes, with practice. ArduPilot can hold position and fly planned routes, which makes it easier than a racing drone. Choose the ground kit so everything arrives set up, and consider our on-site training to get your team flying safely.

    Which parts option should my agency buy?

    If any federal grant money is involved, or your state restricts drone purchases, choose NDAA-sourced. We can provide a component origin list for your file. If no sourcing rules apply, Standard gives you more video, control, and camera options.

    Do I need a license to fly it?

    The drone must be registered with the FAA. Any work or agency use generally requires a Part 107 remote pilot certificate or your agency's own FAA authorization. Every Picket-7 ships with a Remote ID broadcast module installed.

    How long until it ships?

    Each drone is built to order and ships in 3 to 4 weeks. We print, assemble, tune, and test-fly every unit before it leaves North Carolina, and you get a tracking number when it ships.

    Can my agency pay with a purchase order or grant funds?

    Yes. Use the quote button to get a formal quote with our W-9. Online checkout for card and P-card buyers is coming soon.

    Do you ship outside the US?

    No. The Picket-7 is sold and shipped to US addresses only and may not be exported.

    Agency & fleet orders

    Buying More Than One?

    Get a formal quote for purchase orders, grants, or fleets. We can bundle drones, ground kits, and on-site training into one line item.

    Request a QuoteSee Training
